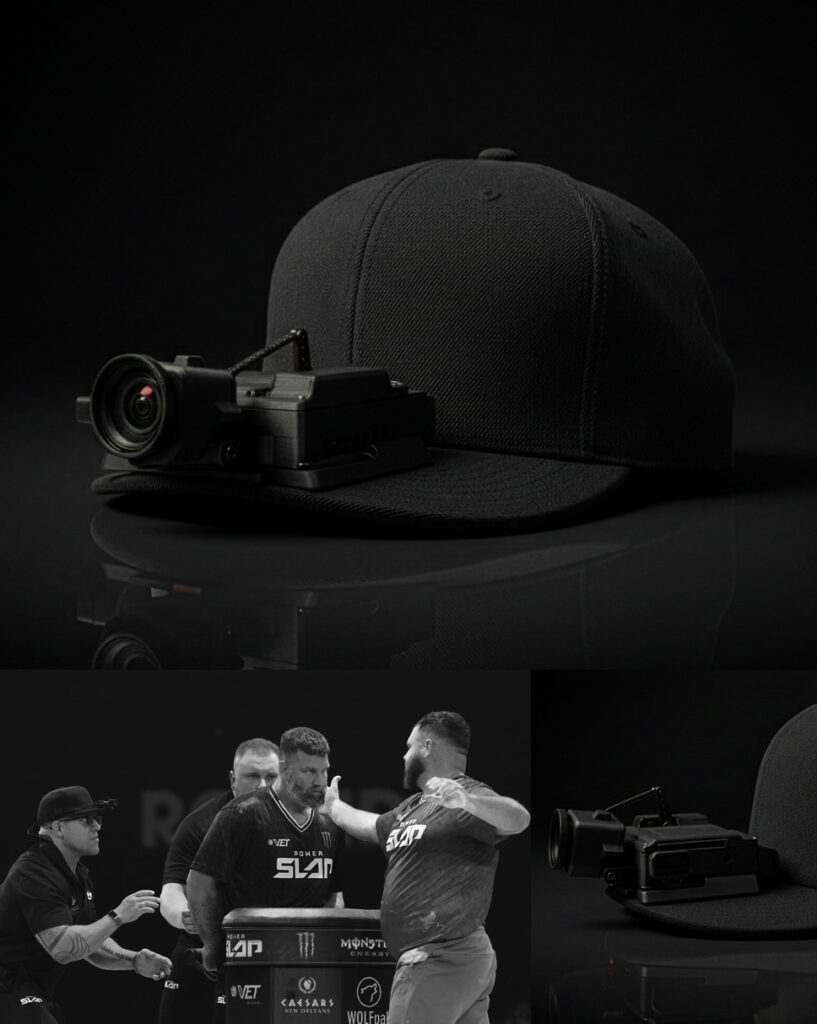

Coming in at just 89 grams. The entire system integrates onto a cap, making wires a thing of the past. Uniquely, the system features RF controlled tilt, ensuring the action is framed perfectly. Horizon lock and EIS combine to provide the most usable feed in play.
27 megapixel
1 – 1.9inch CMOS
4K / 120fps
2.7K / 240fps
1080 / 240fps
1080 / 59.94p
1080 / 50p
Full horizon lock and industry leading EIS
8-bit 4:2:0
10-bit (4K) 4:2:0
H.265 HEVC
W: 66mm / 2.56in
H: 64mm / 2.5in
D: 25mm / 0.9in
3200mah 7.4v
Lithium Ion
120 Minutes
83g / 2.9oz
Ultra miniature COFDM Digital Video Transmitter
50mw
2 – 2.7ghz
5.1 – 6ghz
Up to 18Mb/s
DVB-T COFDM
8Mhz Bandwidth
HVEC
<120ms
1080p/50/59.94p
In-line colour control provided by broadcast-grade colour correctors and controlled using industry standard shader control (CyanView) adding only 1 frame of latency.
External lav mic provides broadcast-grade 256kb embedded audio.
1080p 50 / 59.94
Stabilised Camera
CABLE
RF Transmitter
ANTENNAS
RF Receiver
ASI-SDI
Decoder, if required
Colour Shader
CAT 6
Colour Control Box
SDI
OB Truck
FIBRE
Broadcast Output
