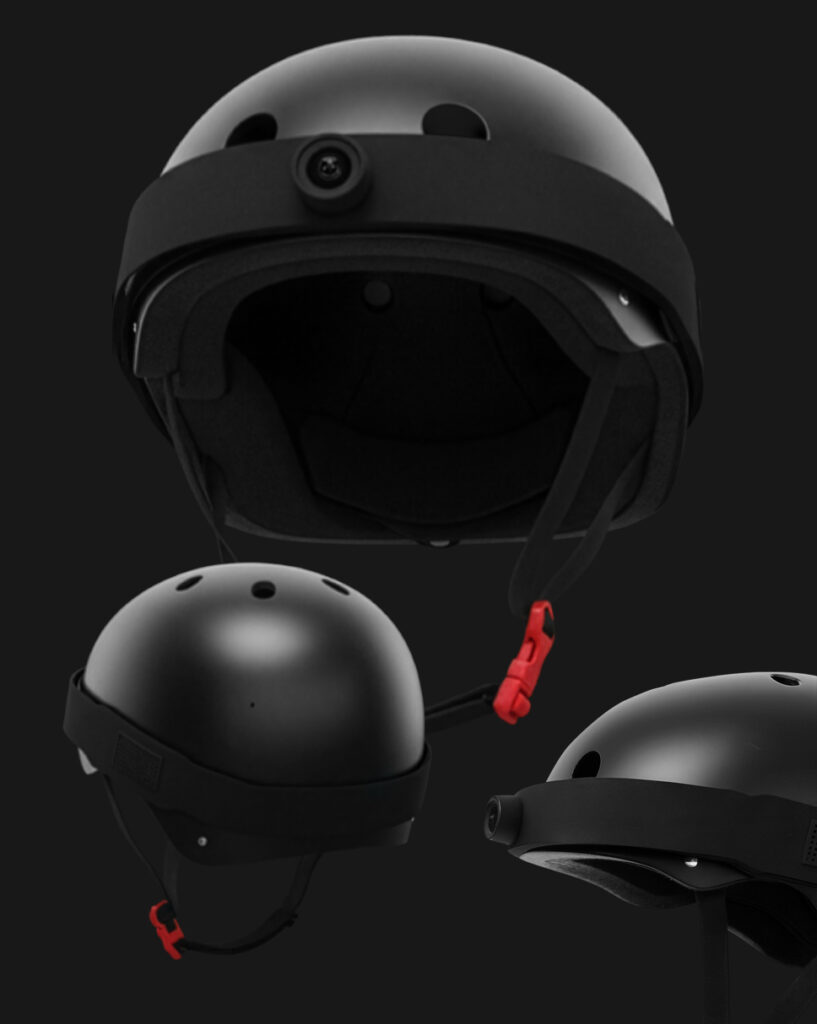

Aka Jockeycam™, is a flexible headband mounted system that can be fitted to any helmet. Weighing just 189 grams including transmitter and battery, this proven system always delivers.
12.3 megapixel
1 – 2.3inch CMOS
4K / 59.94fps / 50fps
1080 / 59.95fps / 50fps
1080 / 59.94i / 50i
Broadcast-grade EIS
8-bit 4:2:0
H.264
1680mah 7.4v
Lithium Ion
35 Minutes
198g / 7oz
Ultra miniature COFDM Digital Video Transmitter
50mw
2 – 2.5ghz
5.1 – 6ghz
Up to 18Mb/s
DVB-T COFDM
8Mhz Bandwidth
H.264
<120ms
1080i/50/59.94
In-line colour control provided by broadcast-grade colour correctors and controlled using industry standard shader control (CyanView) adding only 1 frame of latency.
1080p 50 / 59.94
Stabilised Camera
CABLE
RF Transmitter
ANTENNAS
RF Receiver
ASI-SDI
Decoder, if required
Colour Shader
CAT 6
Colour Control Box
SDI
OB Truck
FIBRE
Broadcast Output
